Fleet Catalogue — GT Infrastructure Equipment

ManufacturerVolvo ABG Paving width2.5 – 7.5 m Output600 tonnes/hour Tractor weight13,820 kg Max. layer thickness300 mm (11.8 in) Power143 hp Fuel tank capacity230 L

02 · Wheel Loaders

Caterpillar Hindustan 2021Z

Production loading for aggregates, plants and stockyards.

ManufacturerCaterpillar Bucket capacity1.7 m³ Payload capacity3 t Hydraulic system flow (output)215 L/min Static tipping load6,010–6,620 kg (full-turn) · 7,107–7,812 kg (straight-ahead) Power115 hp

03 · Motor Graders

Caterpillar 120K2

Fine grading and finishing for highway formation work.

ManufacturerCaterpillar Blade width (moldboard)3.7 m (12 ft) Turning radius7,300 mm (outside front tyres) Power145 hp Top forward speed47.5 km/h Top reverse speed23 km/h Fuel tank capacity305 L

04 · Tandem Vibratory Rollers

Escorts HD 85

Tandem vibratory rolling for asphalt mainline work.

ManufacturerEscorts Kubota Type9 t Tandem Vibratory Roller Drum width1,680 mm x 2 Vibration frequency33 / 50 Hz Amplitude0.4 / 1.00 mm Power75 hp Max. speed13.8 km/h (max. working speed 8.5 km/h) Fuel tank capacity160 L

05 · Baby Tandem Rollers

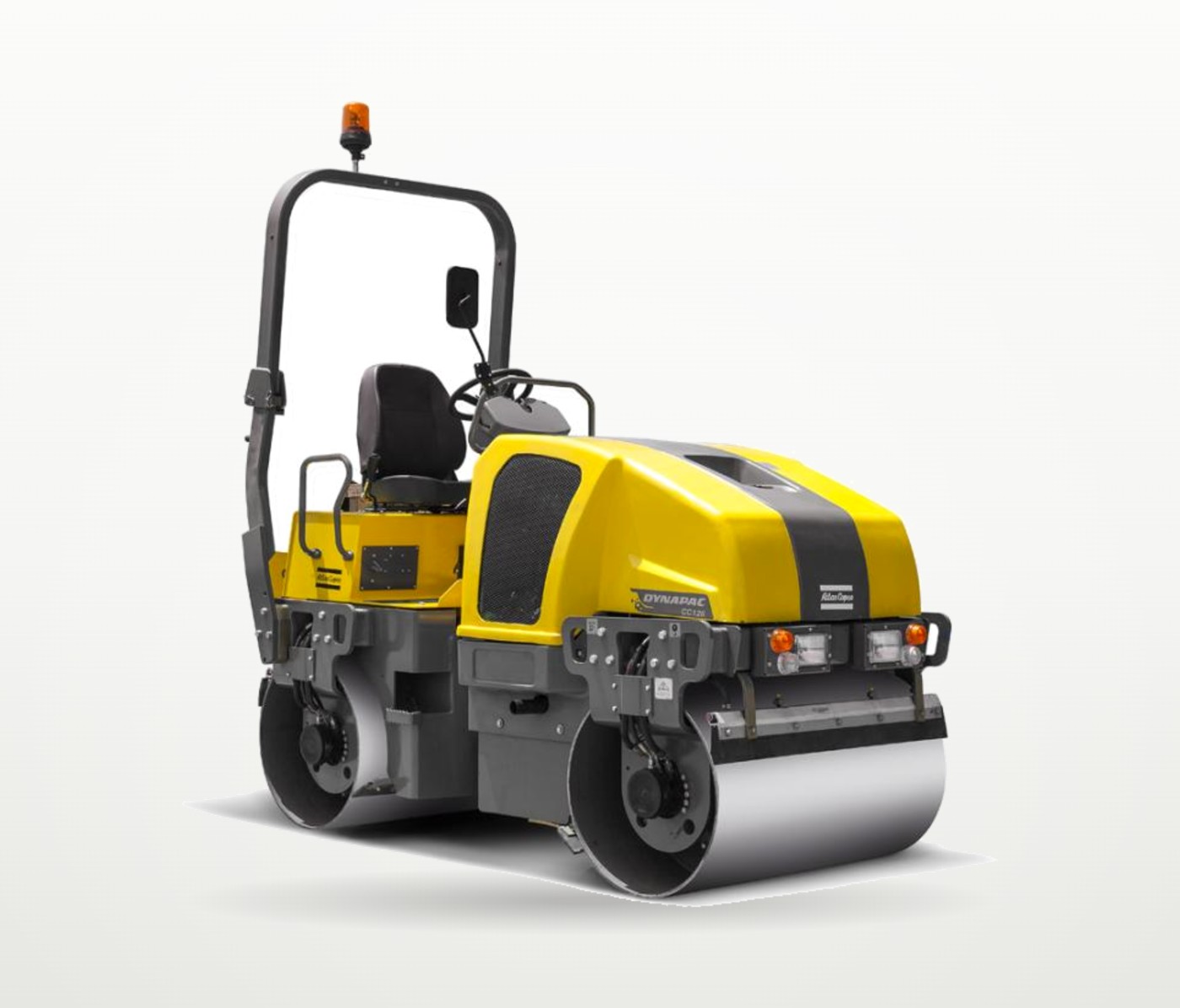

Dynapac CC125

Light double-drum rolling for shoulders, joints, civil and urban work.

ManufacturerDynapac Type3 t Compact Tandem Vibratory Roller Drum width1,200 mm x 2 Drum diameter682 mm Centrifugal force27 kN Vibration frequency58 Hz Nominal amplitude0.5 mm GradeabilityMax. 38% Power39 hp Speed0 – 12 km/h Water tank volume160 L Fuel tank capacity50 L

06 · Dozers

Caterpillar D5

Low ground pressure crawler dozing for site formation and grading.

ManufacturerCaterpillar Blade capacities3.5 – 4.3 m³ Power170 hp Fuel tank capacity315 L

07 · Soil Vibratory Compactors

HAMM & the Escorts range.

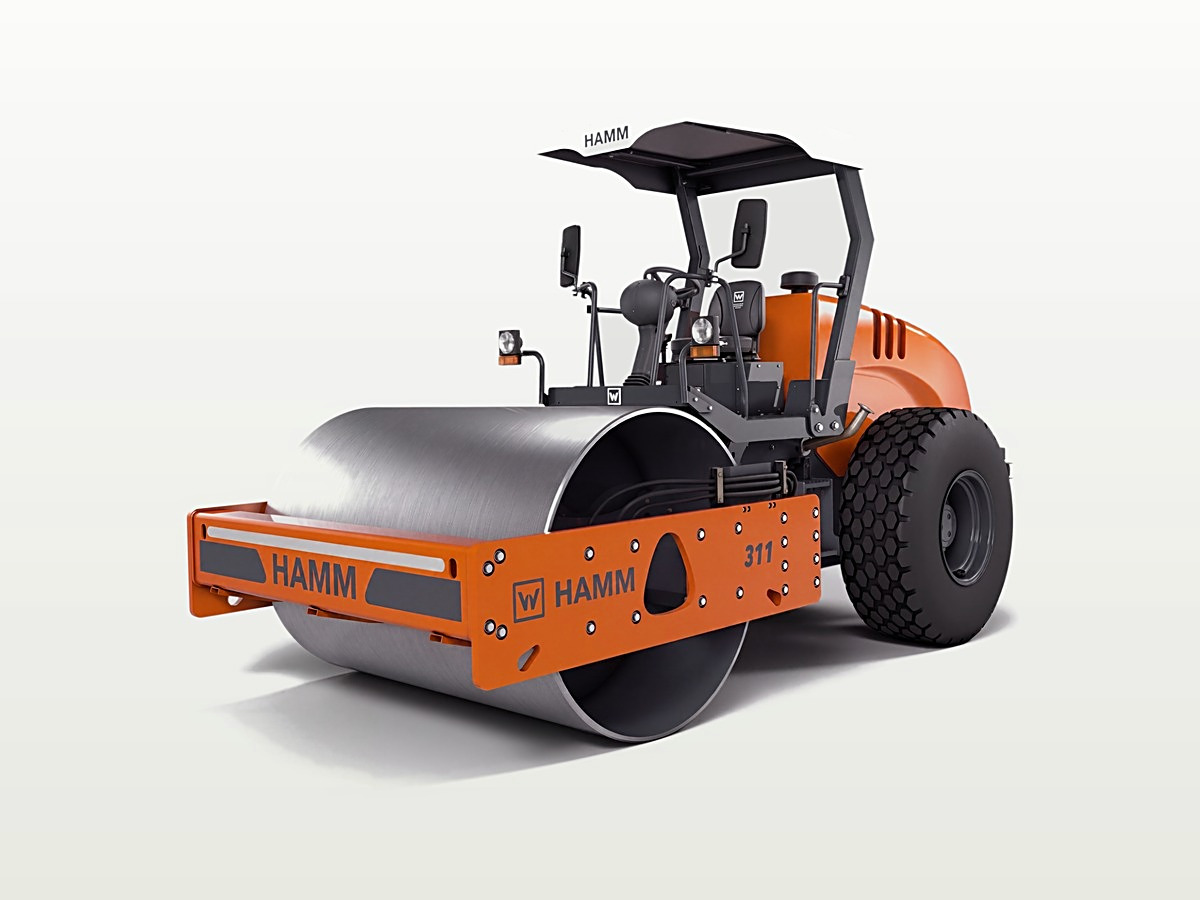

HAMM 311

ManufacturerHAMM AG Type11 t Soil Vibratory Compactor Drum width2,140 mm Centrifugal force240 kN Vibration frequency40 Hz Amplitude1.8 mm Power99 hp Max. speed12 km/h Fuel tank capacity290 L

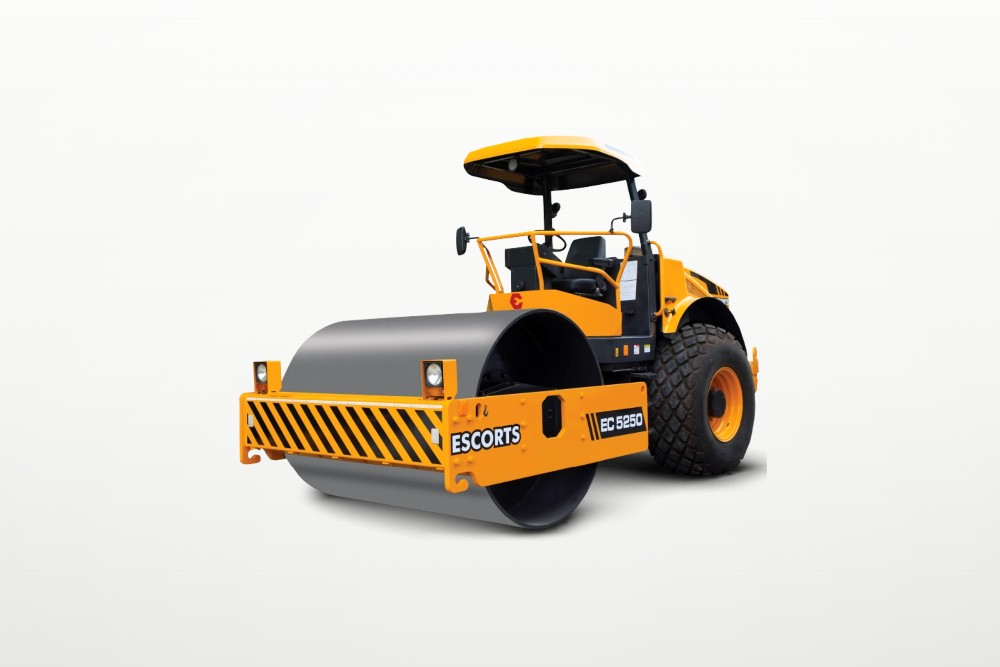

Escorts EC 5250

ManufacturerEscorts Kubota Type10 t Soil Vibratory Compactor Drum width2,130 mm Drum diameter1,520 mm Vibration frequency30 Hz AmplitudeHigh 1.72 mm / Low 0.8 mm Power105 hp Max. speed23 km/h Fuel tank capacity265 L

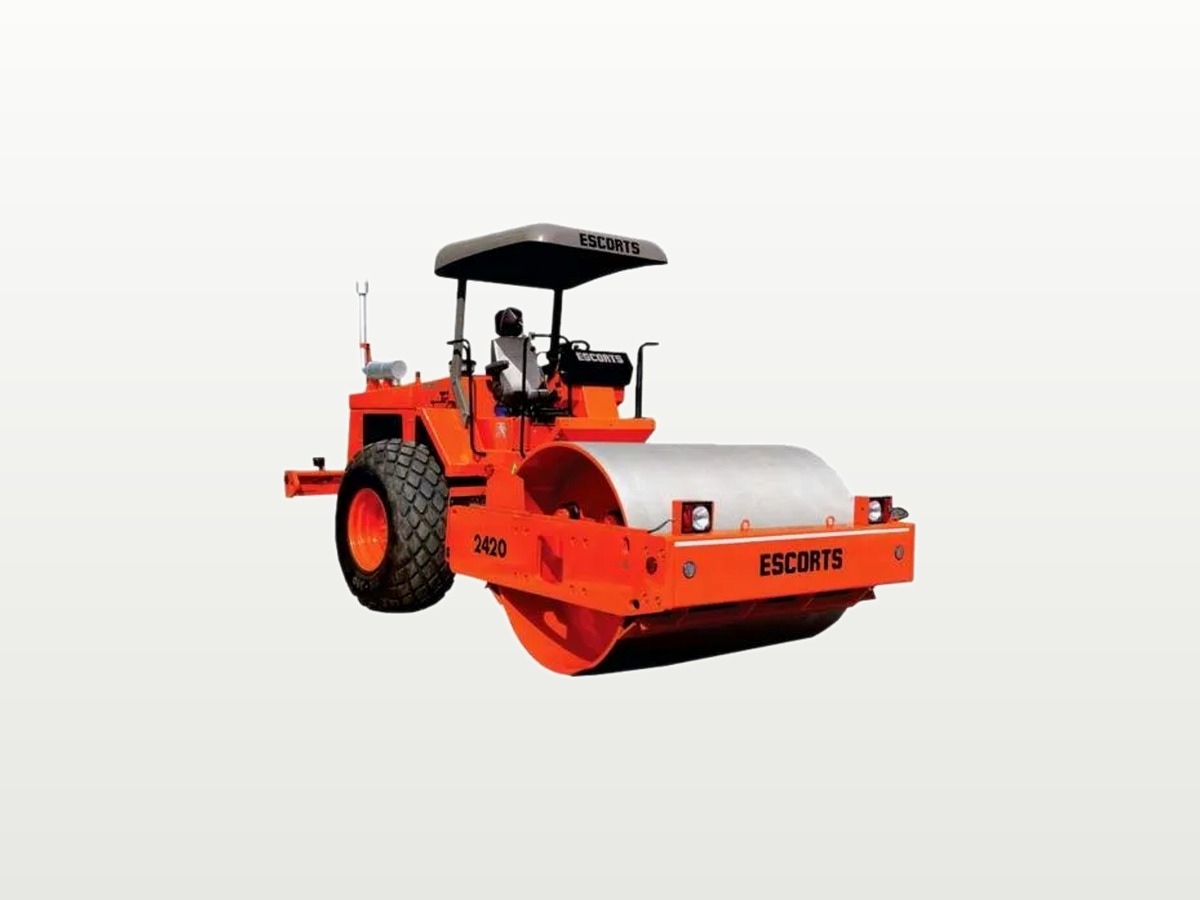

Escorts EC 2420

ManufacturerEscorts Kubota Type12.5 t Soil Vibratory Compactor Drum width2,140 mm Centrifugal force26,032 kg Vibration frequency33 / 42 Hz Nominal amplitudeHigh 1.72 – 1.90 mm / Low 0.8 mm Power102 to 112 hp SpeedUp to 19.7 – 23 km/h Fuel tank capacity235 L

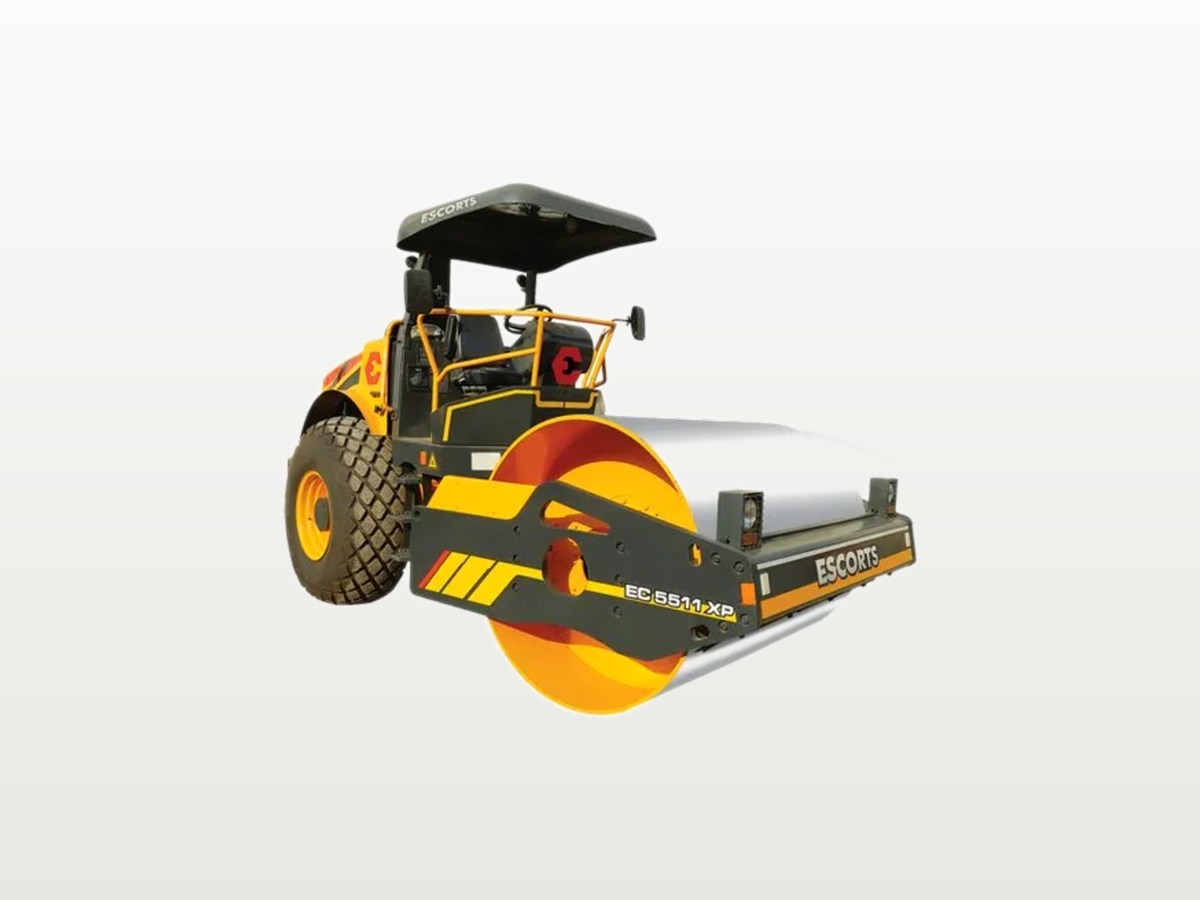

Escorts EC 5511 XP

ManufacturerEscorts Kubota Type11 t Vibratory Soil Compactor Drum width2,130 mm Drum diameter1,523 mm Vibration frequency42 Hz Amplitude settingHigh 1.90 mm / Low 0.8 mm Power105 hp Max. speed23 km/h Fuel tank capacity265 L

08 · Hydra Cranes (new gen)

Escorts F15

Widely used for construction, material handling, and industrial loading.

ManufacturerEscorts Kubota Lifting capacity14 tonnes (at a closed radius) Max boom length17.85 m Max hook length17.6 to 18.2 m Max speed40 to 49 km/h Fuel tank200 – 220 L

Fleet Summary

CategoryMakeModelHeadline Spec

Sensor PaverVolvo ABGP5320D600 t/h output · 2.5–7.5 m paving width Wheel LoaderCaterpillarHindustan 2021Z215 LPM output · 1.7 m³ bucket Motor GraderCaterpillar120K2145 hp · 3.7 m blade width Tandem RollerEscortsHD 859 t vibratory double-drum • 1680 mm Baby Tandem RollerDynapacCC1253 t vibratory double-drum • 1200 mm DozerCaterpillarD5170 hp · 3.5–4.3 m³ blade Soil CompactorHAMM31111 t vibratory • 99 hp Soil CompactorEscortsEC 525010 t vibratory • 105 hp Soil CompactorEscortsEC 5511 XP11 t vibratory • 105 hp Soil CompactorEscortsEC 242012.5 t vibratory • 102–112 hp Hydra CraneEscortsF1514 t · 17.85 m boom

Earthmoving

Road Construction

Lifting

Specifications per manufacturer published data; configuration may vary by unit.
